Front Pull Handle, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
-- Place the door trim panel on a soft surface.
-- Disconnect the connectors at the rear of the door trim panel.

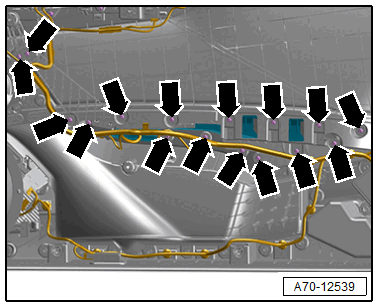

-- Remove the bolts -arrows-.
-- Loosen and remove the pull handle with the armrest from the door trim.

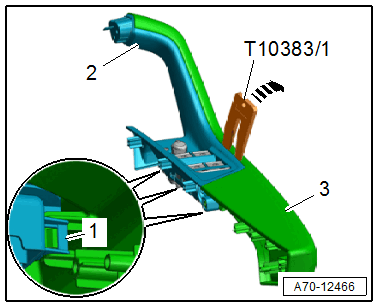

-- Release the retainers -1- using a small screwdriver. At the same time, unclip the switch mount -2- from the pull handle -3- using the : T10383/1 in direction of -arrow-.
-- Release the remaining retainers and remove the switch mount.
