Convertible Top Compartment Side Trim Panel, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Bring the convertible top into the service position. Refer to the appropriate Service Information

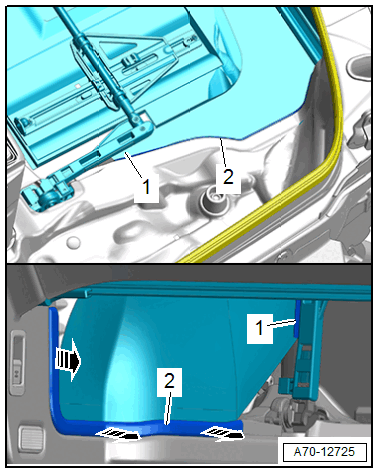

-- Open the convertible top compartment enclosure at the Velcro fastener -1-.
-- Unclip the convertible top compartment enclosure clamping strip -2- using the : 3409 from the convertible top compartment cover trim panel in direction of -arrows-.

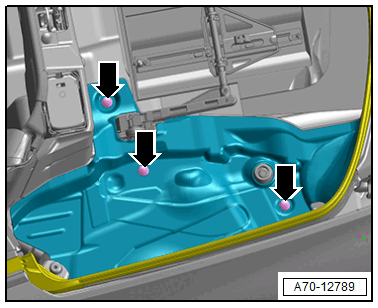

-- Remove the expanding clips -arrows- using the : T40172C .

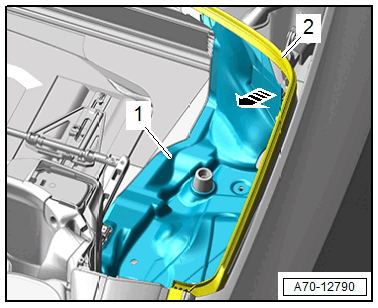

-- Free up the convertible top compartment trim panel -1- in the convertible top compartment seal area -2-.
-- Unclip the convertible top compartment cover trim panel from the body -arrow- using the : 3409 .
-- Disengage the convertible top compartment cover trim panel and remove it upward.
