Convertible Top Compartment Enclosure Trim, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the convertible top compartment enclosure. Refer to CONVERTIBLE TOP COMPARTMENT ENCLOSURE, REMOVING AND INSTALLING .

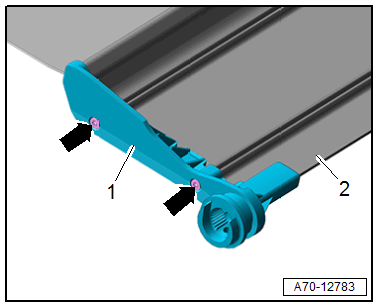

-- Remove the bolts -arrows-.
-- Remove the bearing -1- from the convertible top compartment enclosure trim -2-.

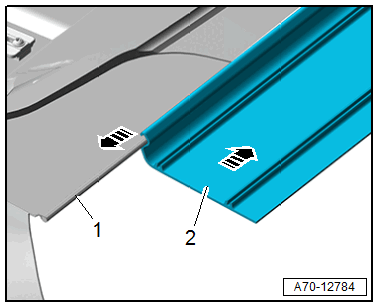

-- Disconnect the convertible top compartment enclosure molding -1- and the convertible top compartment enclosure trim -2- from each other in direction of -arrows-.
-- Remove the convertible top compartment enclosure trim.
