Convertible Top Compartment Enclosure Rear Mounting Bracket, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the luggage compartment side trim panel on the front passenger side. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, A5 CABRIOLET .

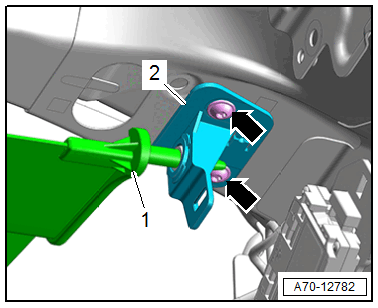

-- Remove the bolts -arrows-.
-- Remove the convertible top compartment enclosure mounting bracket -2- from the mount.
-- Pull out and remove the mounting bracket from the convertible top compartment enclosure trim -1-.
