Spring Element For Bumper Cover Bracket, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the impact member. Refer to IMPACT MEMBER, REMOVING AND INSTALLING .
CAUTION:
Risk of injury due to flying metal shavings.
Irritation and injury to skin and eyes possible.
- Wear protective eyewear.
- Wear safety gloves.

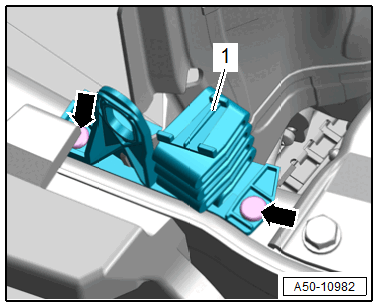

-- Drill out the rivet heads -arrows-, drive out the rivet shafts and remove any rivet remnants.
-- Remove the spring element -1- for the bumper cover bracket.
