Spring Element For Bumper Cover Bracket, Removing And Installing: Installing

Install in reverse order of removal and note the following:

Market-Specific:

Courtesy of AUDI OF AMERICA, LLC

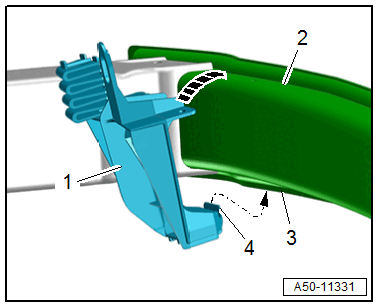

-- Engage the support -1- with the lower support on the impact member -2- and then pivot upward in direction of -arrow-.

• The tab -4- in the support must at the same time engage in the edge -3- of the impact member.

Continuation:

-- Rivet the spring element or support with the spring element using the rivets.

-- Push the spring element all the way down and tighten the bolt.

-- Adjust the spring element. Refer to HEIGHT, ADJUSTING USING SPRING ELEMENT .
