Overview - Adjusting Element, Market-Specific Version

WARNING: This page is about a different variant/trim than selected.

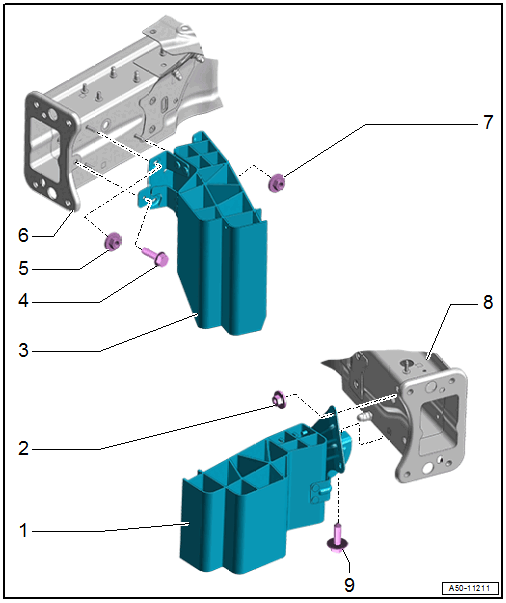

Fig 1: Exploded View Of Adjusting Element, Market-Specific Version
GWWA50-11211Courtesy of AUDI OF AMERICA, LLC
  1. Wheel Alignment
    • Right
  2. Nut
    • 20 Nm
    • Quantity: 2
  3. Wheel Alignment
    • Left
  4. Bolt
    • 8 Nm
  5. Nut
    • 8 Nm
    • Quantity: 2
  6. Longitudinal Member
    • Left
  7. Nut
    • 8 Nm
  8. Longitudinal Member
    • Right
  9. Bolt
    • 20 Nm
