Adjusting Element, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the front wheel spoiler. Refer to FRONT WHEEL SPOILER, REMOVING AND INSTALLING .

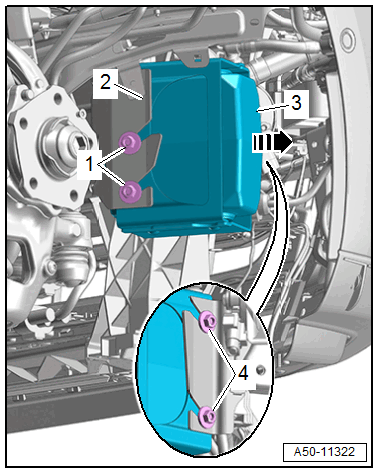

-- Remove the nuts -1 and 4-.

GWWA50-11322Courtesy of AUDI OF AMERICA, LLC

-- Guide the vibration damper -3- out of the mount -2- in direction of -arrow-.
