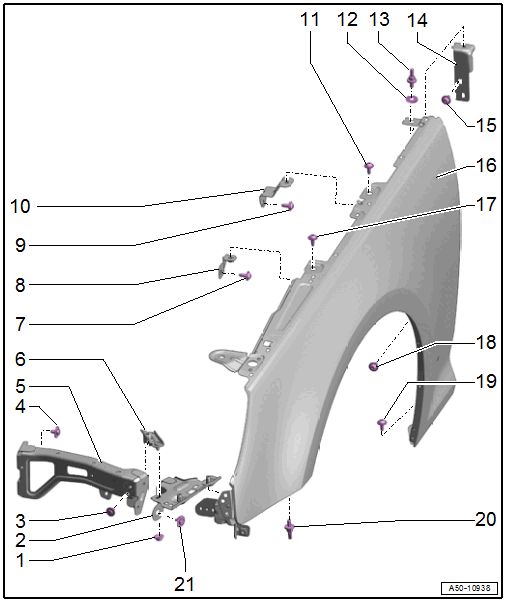

Overview - Fender
WARNING: This page is about a different variant/trim than selected.
- Overview - Covers on Fender. Refer to OVERVIEW - COVERS ON FENDER .
- Overview - Fender Repair Set. Refer to OVERVIEW - FENDER REPAIR KIT .
- Nut
- 8 Nm
- Equipment version; not on RS 4 and RS 5
- Fender Brace
- Outside
- Equipment version; not on RS 4 and RS 5
- Removing and Installing. Refer to BRACE AND OUTER FENDER BRACE, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Equipment version; not on RS 4 and RS 5
- Bolt
- 8 Nm
- Quantity: 2
- Fender Brace
- Removing and Installing. Refer to FENDER BRACE, REMOVING AND INSTALLING .
- Brace
- For fender brace
- Equipment version; not on RS 4 and RS 5
- Removing and Installing. Refer to BRACE AND OUTER FENDER BRACE, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Bracket
- Front
- Bolt
- 8 Nm
- Bracket
- Center
- Bolt
- 8 Nm
- Washer
- Double Bolt
- 8 Nm
- Bracket
- Rear
- Bolt
- 8 Nm
- Fender
- There are different versions.
- Removing and Installing. Refer to FENDER, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Bolt
- 8 Nm
- Quantity: 2
- Bolt
- 8 Nm
- Quantity: 2
- Double Bolt
- 8 Nm
- Quantity: 2
- Bolt
- 8 Nm
- Not on RS 4 and RS 5
- Quantity: 2
