Brace And Outer Fender Brace, Removing And Installing, A5: Removing

-- Remove the bumper cover mount. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .

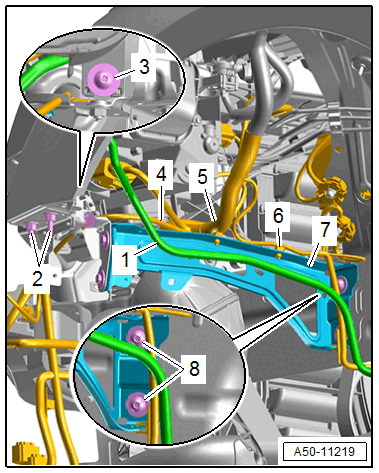

Left:

Courtesy of AUDI OF AMERICA, LLC

-- Free up the breather hose -1- for the headlamps.

-- Free up the wiring harnesses -4, 5 and 6-.

-- Remove the bolts -3 and 8- and the double bolts -2-.

-- Remove the fender brace -7-.

Right:

Courtesy of AUDI OF AMERICA, LLC

-- If equipped, loosen the parking heater from the body. Refer to the appropriate Service Information .

-- Free up the connector -2-.

-- Remove the nut -1- and free up the wiring harness -3-.

-- Free up the breather hose -3- for the headlamps.

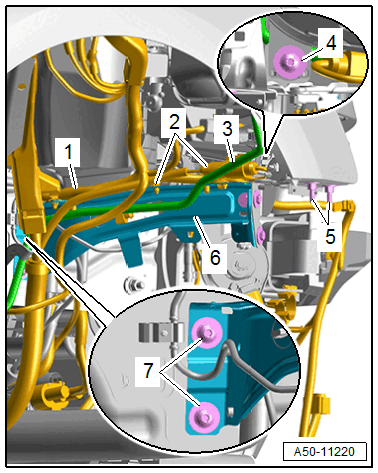

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harness at -items 1 and 2-.

-- Remove the bolts -4 and 7- and double bolts -5-.

-- Remove the fender brace -6-.

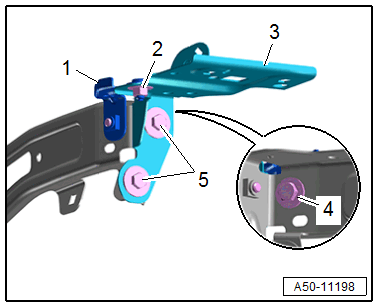

Continuation:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -4 and 5- and nut -2-.

-- Remove the brace -1- and the outer fender brace -3-.
