Brace And Outer Fender Brace, Removing And Installing, A4: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the bumper cover mount. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .

Left:

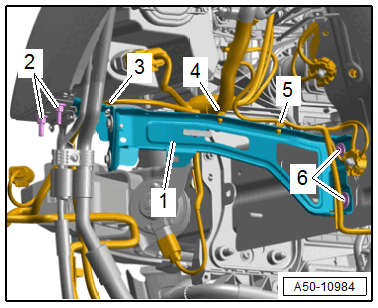

GWWA50-10984Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harnesses -3, 4 and 5-.

-- Remove the bolts -6- and the double bolts -2-.

-- Remove the fender brace -1-.

Right:

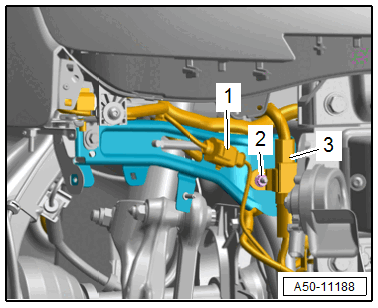

GWWA50-11188Courtesy of AUDI OF AMERICA, LLC

-- Free up the connector -1-.

-- Remove the nut -2- and free up the wiring harness -3-.

-- Free up the wiring harness -2 and 3-.

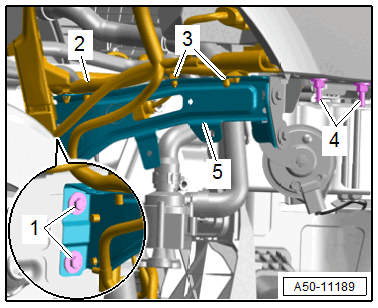

GWWA50-11189Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1- and the double bolts -4-.

-- Remove the fender brace -5-.

Continuation:

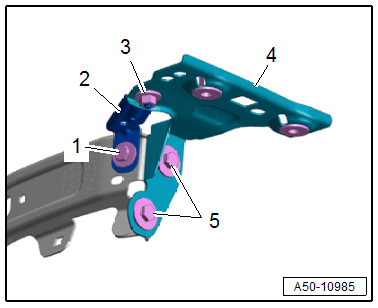

GWWA50-10985Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 and 5- and the nut -3-.

-- Remove the brace -2- and the outer fender brace -4-.
