Air Guide For Glove Compartment Cooling, Removing And Installing, A4 And A5: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .
-- Remove the right footwell vent (front passenger side). Refer to FRONT PASSENGER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .

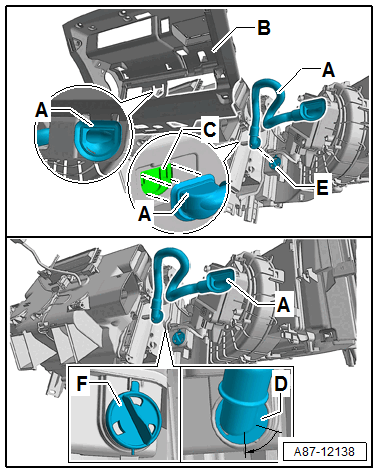

-- Loosen and remove the air duct for the glove compartment cooling -A- by turning the connection location -D- (-arrow-) from the heater and A/C unit.
