Overview - Actuators On Air Intake Manifold

WARNING: This page is about a different variant/trim than selected.

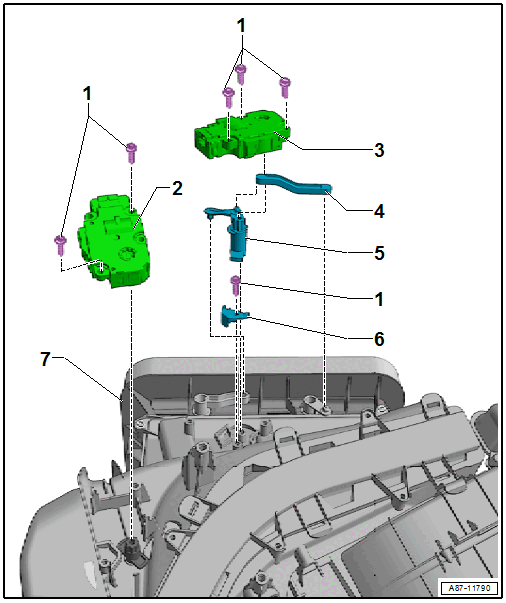

Fig 1: Exploded View Of Actuators On Air Intake Manifold
GWWA87-11790Courtesy of AUDI OF AMERICA, LLC
  1. Screw
    • Tightening specification 1 Nm
  2. Recirculation Door Motor -V113-
  3. Fresh Air Door Motor -V438-
  4. Fastener
  5. Shaft with Lever
  6. Bracket
  7. Air Intake Manifold
