Overview - Telephone, BLUETOOTH Hands-Free Calling, 9ZX

The Information Electronics Control Module 1 -J794- is installed with the Microphone Unit In Front Roof Module -R164- and is exclusively for hands-free calling. The Cellular Telephone -R54- is connected via Bluetooth.

The Bluetooth Antenna -R152- is installed in the Information Electronics Control Module 1 -J794-.

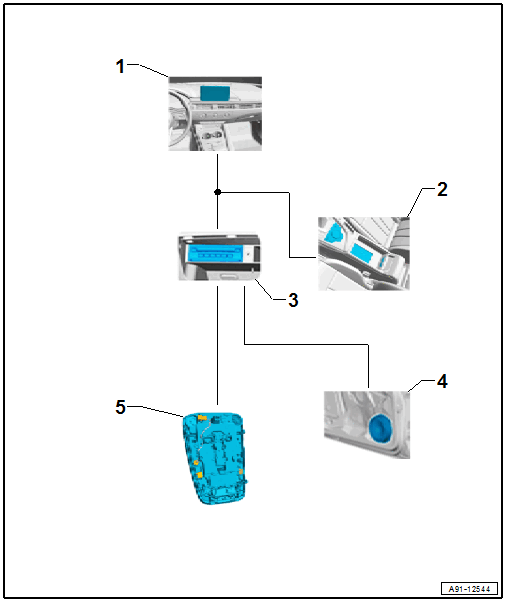

9ZX - Bluetooth Hands-Free Calling in the Information Electronics Control Module 1 -J794-

Courtesy of AUDI OF AMERICA, LLC

1. Front Information Display Control Head -J685-, Display in Center of the Instrument Panel
2. Multimedia System Control Head -E380- in the Center Console
3. Information Electronics Control Module 1 -J794- with Bluetooth Antenna -R152- in the Glove Compartment
4. Sound Systems
5. Microphone Unit In Front Roof Module -R164- in the Front Interior Lamp -W1-

Antennas

9ZX - Bluetooth hands-free calling without Audi connect and without emergency calling function EL0/IW0:

• No Telephone Antenna -R65- is installed
• No LTE antennas (-R297- / -R306-) are installed

9ZX - Bluetooth hands-free calling without Audi connect and without emergency calling function EL0/IW0:

• No Telephone Antenna -R65- is installed
• The LTE Antenna 1 -R297- is installed in the Roof Antenna -R216- /under the rear bumper cover on the left side/in the convertible top compartment cover.
• The LTE Antenna 2 -R306- is installed under the rear bumper cover on the left side

Overview Antennas

Courtesy of AUDI OF AMERICA, LLC

1. Information Electronics Control Module 1 -J794-
2. Not installed
3. Not installed
4. Not installed
5. Left Bumper Antenna
   • LTE Antenna 2 -R306-, IV0/IW0
6. LTE Antenna 1 -R297-, IV0/IW0
   • In the Roof Antenna -R216-, Coupe/Sportback
   • In the convertible top compartment cover, Cabriolet

Antenna, removing and installing. Refer to COMPONENT LOCATION OVERVIEW - ANTENNA SYSTEMS .

Fault Finding is performed using the "Guided Fault Finding"  on the Vehicle Diagnostic Tester.

Antenna wires, repairing. Refer to ANTENNA WIRES, REPAIRING .

Notes on Bluetooth Technology

A standardized radio connection is used for data transfer between the Information Electronics Control Module 1 -J794- and Cellular Telephone -R54- - Bluetooth Technology. The range of the radio connection is approximately 10 m.

Notes on MOST Bus

The optical data bus "MOST bus" is used in addition to the CAN bus.

A fiber-optic cable is used. Fiber optic cables are routed inside corrugated tubes for protection.

Replace the complete fiber-optic cable if possible.

The front surface of the connectors must not be contaminated.

If disconnecting the connectors: Attach the Fiber-Optic Repair Set - Connector Protective Caps: VAS6223/9  .

When routing fiber-optic cables, make sure not to go below the minimum bending radius of 25 mm. Do not crush or kink the fiber-optic cables.

Repairing fiber-optic cables. Refer to GENERAL REPAIR INFORMATION .
