TV Tuner, Removing And Installing, Coupe/SPORTBACK: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

The bracket must be removed first.

-- Release and disconnect all connectors from the TV Tuner -R78-.

-- Insert the : VAS6223/9  -1- onto the MOST bus connector -2-.

Fig 1: Fiber-Optic Cable Harness Connector And Protective Cap For Cable Connector VAS 6223/9

Courtesy of AUDI OF AMERICA, LLC

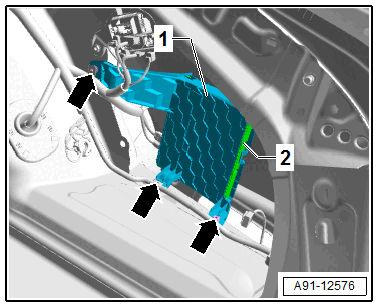

-- Remove the nuts -arrows- on the bracket -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the TV Tuner -R78- -2- with the bracket -1- from the vehicle.

The TV Tuner -R78- is engaged to the bracket.

Courtesy of AUDI OF AMERICA, LLC

-- Push the catches on the bracket -2- and remove the TV Tuner -R78- -1- in direction of -arrow- from the bracket -2-.
