Component Location Overview - TV System
WARNING: This page is about a different variant/trim than selected.

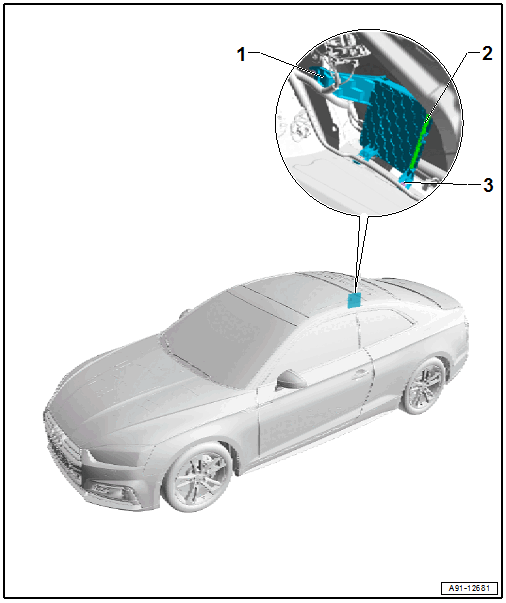

NOTE:
The component locations are shown on a Coupe. The component locations for the other vehicle models are the same.
- Bracket
- TV Tuner -R78-
- Behind the luggage compartment right side trim
- The appropriate Wiring Diagram
- Removing and Installing, Coupe/Sportback. Refer to TV TUNER, REMOVING AND INSTALLING, COUPE/SPORTBACK .
- Removing and Installing, Cabriolet. Refer to TV TUNER, REMOVING AND INSTALLING, CABRIOLET .
- Nut
- 3 Nm
- Quantity: 3
