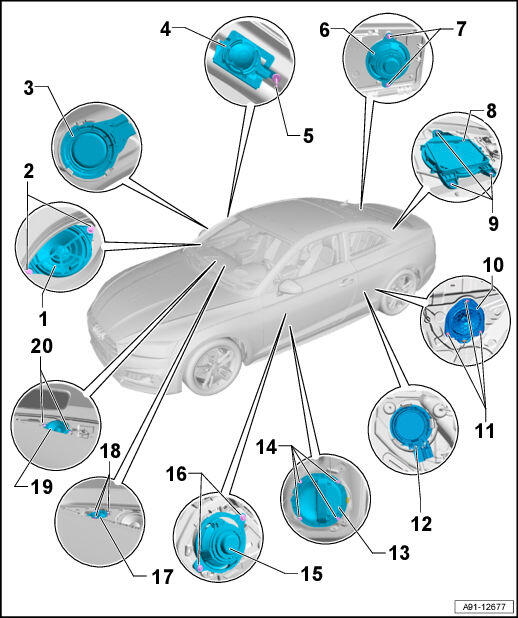

Component Location Overview - Sound System, Speakers, Coupe
WARNING: This page is about a different variant/trim than selected.
- Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-, 8RM, 9VD
- Left Front Midrange Speaker 2 -R276- /Right Front Midrange Speaker 2 -R277-, 9VS
- Removing and Installing. Refer to LEFT AND RIGHT FRONT TREBLE SPEAKER -R20- / -R22-, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Quantity: 2
- Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-, 9VS
- Removing and Installing. Refer to LEFT AND RIGHT FRONT TREBLE SPEAKER -R20- / -R22-, REMOVING AND INSTALLING, 9VS .
- Left Front Treble Speaker 2 -R220- /Right Front Treble Speaker 2 -R221-, 9VS
- Removing and Installing. Refer to LEFT AND RIGHT FRONT TREBLE SPEAKER 2 -R220- / -R221-, REMOVING AND INSTALLING .
- Pop Rivet
- Refer to the Parts Information.
- Left Effects Speaker -R209- /Right Effects Speaker -R210-, 9VS
- Removing and Installing. Refer to Left Effects Speaker -R209- /Right Effects Speaker -R210-, REMOVING AND INSTALLING, COUPE .
- Bolt
- 2 Nm
- Quantity: 2
- Subwoofer -R211-, 9VD, 9VS
- Removing and Installing. Refer to Subwoofer -R211-, REMOVING AND INSTALLING, COUPE .
- Bolt
- 2 Nm
- Quantity: 3
- Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17-
- Removing and Installing. Refer to LEFT AND RIGHT REAR BASS SPEAKER -R15- / -R17-, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- Quantity: 3
- Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-
- Removing and Installing. Refer to LEFT AND RIGHT REAR TREBLE SPEAKER -R14- / -R16-, REMOVING AND INSTALLING .
- Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-
- Removing and Installing. Refer to LEFT AND RIGHT FRONT BASS SPEAKER -R21- / -R23-, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- Quantity: 4
- Left Front Midrange Speaker -R103- /Right Front Midrange Speaker -R104-, 9VS
- Removing and Installing. Refer to FRONT MIDRANGE SPEAKER, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Quantity: 2
- Center Speaker 2 -R219-, 9VS
- Removing and Installing. Refer to Center Speaker 2 -R219-, REMOVING AND INSTALLING, 9VS .
- Retainers
- Center Speaker -R208-, 9VD, 9VS
- Removing and Installing. Refer to Center Speaker -R208-, REMOVING AND INSTALLING, 9VD/9VS .
- Bolt
- 2 Nm
- Quantity: 2
