Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING, COUPE/SPORTBACK: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the luggage compartment floor covering.

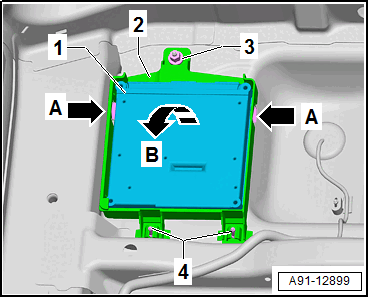

The Control Module for Emergency Call Module and Communication Unit -J949- -1- is engaged in the bracket -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Press the retainers -A arrows- and pry out the Control Module for Emergency Call Module and Communication Unit -J949- -1- -arrow B-.

-- Release and disconnect the connectors from the Control Module for Emergency Call Module and Communication Unit -J949- -1-.

Bracket, Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -3- and remove the bracket -2- from the threaded pins -3 and 4-.

-- Audi A5 Sportback g-tron: remove the nuts -3 and 4- and remove the bracket -2- from the threaded pins -3 and 4-.
