Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING, CABRIOLET: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the rear seat backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .

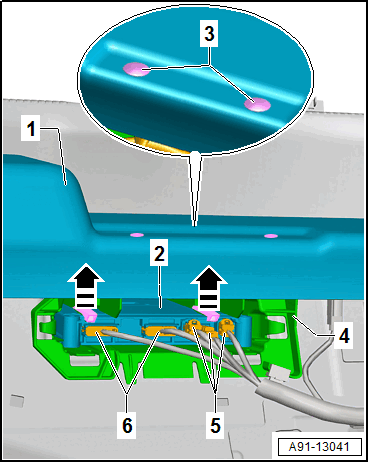

-- Remove the expanding clips -3- using the Pliers: T40172C .
-- Lift the front of the luggage compartment floor -1- near the Control Module for Emergency Call Module and Communication Unit -J949-.
-- Release and disconnect the connectors -6- and antenna wires -5-.
-- Release the retainers -arrows-.
-- Remove the Control Module for Emergency Call Module and Communication Unit -J949- -2- from the mount -4-.
