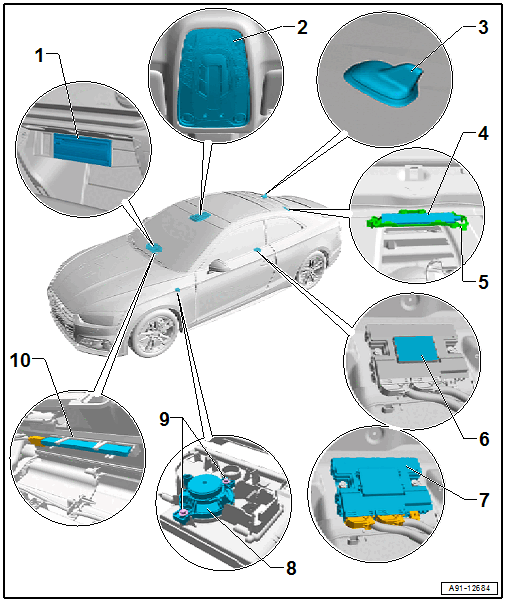

Component Location Overview - Mobile Online Services, RUSSIA Only, IW1
WARNING: This page is about a different variant/trim than selected.
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Front Interior Lamp -W1-
- With Emergency Call Button -E276- /Left Front Microphone -R140-
- Removing and Installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Roof Antenna -R216-
- Emergency Call Module Antenna -R263-
- GPS Antenna -R50-
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- not installed
- not installed
- Telematics Emergency Battery -A16-
- In the Data Bus on Board Diagnostic Interface -J533-
- Removing and Installing. Refer to CONNECTED GATEWAY, REPLACING EMERGENCY BATTERY .
- Data Bus on Board Diagnostic Interface -J533-
- Underneath the rear bench seat
- Removing and Installing. Refer to DATA BUS ON BOARD DIAGNOSTIC INTERFACE -J533-, REMOVING AND INSTALLING .
- Emergency Call Module Speaker -R335-
- In the driver side instrument panel cover
- Removing and Installing. Refer to Emergency Call Module Speaker -R335-, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 2 Nm
- not installed
