Component Location Overview - Mobile Online Services, IW3/IW5, From My 2019 With Connect Plus (IV1 Through IV8)

Courtesy of AUDI OF AMERICA, LLC

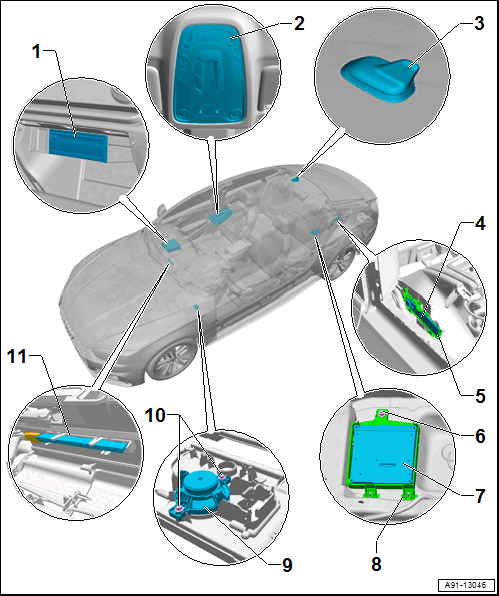

1. Information Electronics Control Module 1 -J794-
   • In the glove compartment
   • The appropriate Wiring Diagram
   • Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
2. Front Interior Lamp -W1-
   • With Left Front Microphone -R140-
   • Removing and Installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
3. GPS Antenna -R50-
   • Coupe/Sportback: in the Roof Antenna -R216-
   • Cabriolet: on the left side of the convertible top compartment cover
   • Removing and Installing. Refer to GPS ANTENNA, REMOVING AND INSTALLING .

     - Emergency Call Module Antenna 2 -R322-

   • Coupe/Sportback: in the Roof Antenna -R216-
   • Cabriolet: in the center of the convertible top compartment cover
   • Removing and Installing, Coupe/Sportback. Refer to Emergency Call Module Antenna 2 -R322-, REMOVING AND INSTALLING, COUPE/SPORTBACK, FROM MY 2019 WITH CONNECT PLUS (IV1 THROUGH IV8) .
   • Removing and Installing, Cabriolet. Refer to Emergency Call Module Antenna 2 -R322-, REMOVING AND INSTALLING, CABRIOLET, FROM MY 2019 WITH CONNECT PLUS (IV1 THROUGH IV8) .
4. Emergency Call Module Antenna -R263-
   • Removing and Installing, Coupe (under the rear shelf). Refer to Emergency Call Module Antenna -R263-, REMOVING AND INSTALLING, COUPE, FROM MY 2019 WITH CONNECT PLUS (IV1 THROUGH IV8) .
   • Removing and Installing, Sportback (on the left rear seat belt guide). Refer to Emergency Call Module Antenna -R263-, REMOVING AND INSTALLING, SPORTBACK, FROM MY 2019 WITH CONNECT PLUS (IV1 THROUGH IV8) .
   • Removing and Installing, Cabriolet (on bracket for Data Bus on Board Diagnostic Interface -J533-). Refer to Emergency Call Module Antenna -R263-, REMOVING AND INSTALLING, CABRIOLET, FROM MY 2019 WITH CONNECT PLUS (IV1 THROUGH IV8) .
5. Bracket
6. Nut
   • 3 Nm
7. Control Module for Emergency Call Module and Communication Unit -J949-
   • Coupe/Sportback: on the front left side of the luggage compartment
   • Removing and Installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING, COUPE/SPORTBACK .
   • Cabriolet: under the right side of the rear bench seat
   • Removing and Installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING, CABRIOLET .
   • Telematics Emergency Battery -A16-, Checking. Refer to CONNECTED GATEWAY, REPLACING EMERGENCY BATTERY .
   • Telematics Emergency Battery -A16-, Removing and Installing. Refer to CONNECTED GATEWAY, REPLACING EMERGENCY BATTERY .
8. Threaded Pins
9. Emergency Call Module Speaker -R335-
   • In the driver side instrument panel cover
   • Removing and Installing. Refer to Emergency Call Module Speaker -R335-, REMOVING AND INSTALLING .
10. Bolt
    • Quantity: 2
    • 2 Nm
11. not installed
