Overview - External Multimedia Device Connection

WARNING: This page is about a different variant/trim than selected.

There are several versions of the External Audio Source Connection -R199- :

>>USB charging<< and >>USB connection<< are the USB Distributor -R293- with USB Connection 1 -U41- /USB Connection 2 -U42-.

AMI - Audi Music Interface

ASI - Audi Smartphone Interface

The External Audio Source Connection -R199- is part of the Information Electronics Control Module 1 -J794-.

AMI Component Location - USB Connection BaseplateR193, USB Charging, AUX IN, UE4

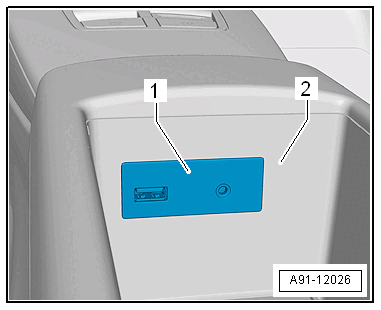

Fig 1: AUX IN component location - USB Connection Baseplate -R193-

Courtesy of AUDI OF AMERICA, LLC

The connections -1- are located in the center console storage compartment -2-.

External devices can be charged via the USB connection.

AMI Component Location - USB DistributorR293 / USB Connection 1U41 / USB Connection 2U42, AUX IN, ASI, UI2/UE7

Fig 2: AMI Component Location - USB Distributor -R293- /USB Connection 1 -U41- /USB Connection 2 -U42-, AUX IN, ASI, UI2/UE7

Courtesy of AUDI OF AMERICA, LLC

The interfaces are located in the center console storage compartment.

The USB ports are fully connected. Various devices can be connected.

Suitable adapter cables are needed. Refer to the Owner's Manual.

Fault Finding is performed using the "Guided Fault Finding" on the Vehicle Diagnostic Tester.
