Satellite Antenna -R170-, REMOVING AND INSTALLING, CONVERTIBLE: Removing
WARNING: This page is about a different variant/trim than selected.
-- Bring the convertible top and convertible top compartment cover into the service position. Refer to the appropriate Service Information .
-- Push the convertible top compartment cover upward until it engages.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Support the convertible top with a suitable wood rod.

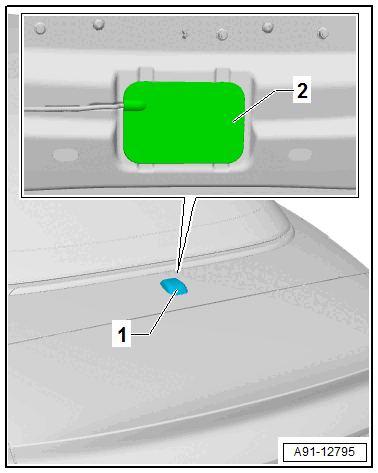

-- Unclip the cover -2- for the Satellite Antenna -R170- -1- on the inside from the convertible top compartment cover.

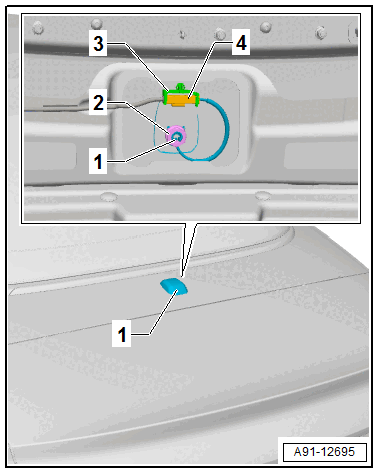

-- Release and disconnect the connector -3-.
-- Unclip the connector -3- from the retainer.
-- Remove the nut -2-.
-- Remove the Satellite Antenna -R170- -1- outward from the convertible top compartment cover.
