GPS Antenna, Removing And Installing, Cabriolet: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the convertible top compartment cover trim panel. Refer to the appropriate Service Information .

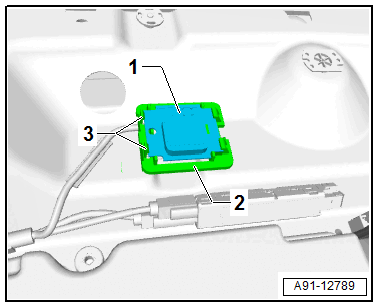

-- Release the retaining tabs -3- from the bracket -2-.
-- Then remove the GPS Antenna -R50- -1- from the bracket -2- until the connector is accessible.
-- Release and disconnect the connector from the GPS Antenna -R50- -1-.
