Component Location Overview - Antenna Systems, SPORTBACK, RUSSIA Only

WARNING: This page is about a different variant/trim than selected.

Courtesy of AUDI OF AMERICA, LLC

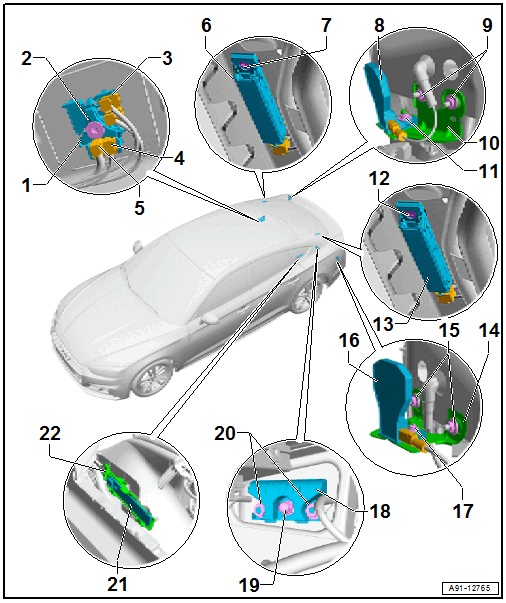

Roof Antenna -R216-
- Antenna assignment depends on vehicle equipment
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
Bolt
- 5 Nm
GPS Connection From GPS Antenna -R50-
GSM Connection From Emergency Call Module Antenna -R263-
RC Connection From Auxiliary Heater Antenna -R182-
Antenna Amplifier -R24-, on upper right side of rear lid
- Removing and Installing. Refer to Antenna Amplifier -R24-, REMOVING AND INSTALLING, SPORTBACK .
  - TV Antenna Amplifier 1 -R82-, on bottom right side of rear lid
- Removing and Installing. Refer to TV Antenna Amplifier 1 -R82-, REMOVING AND INSTALLING, SPORTBACK .
Bolt
- 2 Nm
Telephone Antenna -R65-
- Only on 9ZE
- Removing and Installing. Refer to GSM ANTENNA, REMOVING AND INSTALLING, COUPE/SPORTBACK .
Nut
- Quantity: 2
- 3 Nm
Bracket
Nut
- 3 Nm
Bolt
- 2 Nm
Antenna Amplifier 2 -R111-, on upper left side of rear lid
- Removing and Installing. Refer to Antenna Amplifier 2 -R111-, REMOVING AND INSTALLING, SPORTBACK .
  - TV Antenna Amplifier 2 -R83-, on bottom left side of the rear lid
- Removing and Installing. Refer to TV Antenna Amplifier 2 -R83-, REMOVING AND INSTALLING, SPORTBACK .
Bracket
Nut
- Quantity: 2
- 3 Nm
LTE Antenna 1 -R297-
- Only for EL3
- Removing and Installing. Refer to LTE ANTENNAS, REMOVING AND INSTALLING, SPORTBACK, RUSSIA ONLY .
Nut
- 3 Nm
Windshield Antenna Suppression Filter -C18-
- Removing and Installing. Refer to Windshield Antenna Suppression Filter -C18-, REMOVING AND INSTALLING, SPORTBACK .
Nut
- 9 Nm
Nut
- Quantity: 2
- 9 Nm
LTE Antenna 2 -R306-
- Only for EL3
- Removing and Installing. Refer to LTE ANTENNAS, REMOVING AND INSTALLING, SPORTBACK, RUSSIA ONLY .
Bracket
