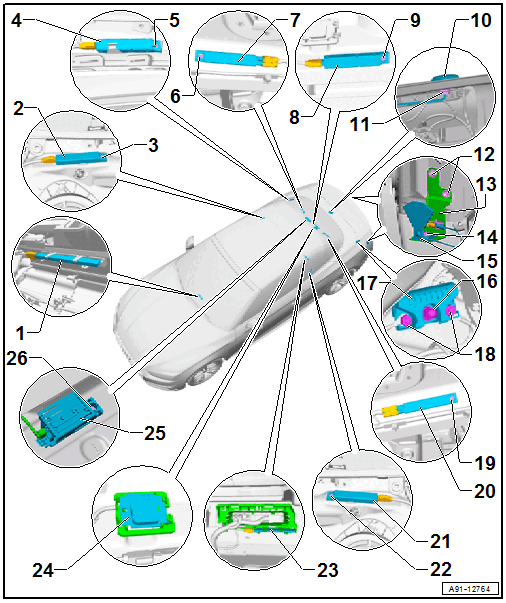

Component Location Overview - Antenna Systems, Cabriolet, From My 2019 With Connect Plus (IV1 Through IV8)

Courtesy of AUDI OF AMERICA, LLC

1. LTE Antenna 2 -R306-
   • Only for EL3 and IW3/IW5
   • Removing and Installing. Refer to LTE ANTENNAS, REMOVING AND INSTALLING, CABRIOLET, FROM MY 2019, WITH CONNECT PLUS (IV1 THROUGH IV8), VEHICLES WITH ECALL/BCALL (IW3/IW5) .
2. TV Antenna Amplifier 1 -R82-
   • On the right railing
   • Removing and Installing. Refer to TV Antenna Amplifier 1 -R82-, REMOVING AND INSTALLING, CABRIOLET .
3. Bolt
   • 2 Nm
4. Antenna Amplifier 3 -R112-
   • On the main bearing for the convertible top on the right side
   • Removing and Installing. Refer to Antenna Amplifier 3 -R112-, REMOVING AND INSTALLING, CABRIOLET .
5. Bolt
   • 2 Nm
6. Bolt
   • 2 Nm
7. Antenna Amplifier -R24-
   • On the convertible top compartment cover on the right side
   • Removing and Installing. Refer to Antenna Amplifier -R24-, REMOVING AND INSTALLING, CABRIOLET .
8. TV Antenna Amplifier 3 -R84-
   • On the center of the convertible top compartment cover
   • Removing and Installing. Refer to TV Antenna Amplifier 3 -R84-, REMOVING AND INSTALLING, CABRIOLET .
9. Bolt
   • 2 Nm
10. Satellite Tuner Antenna -R172-
    • Only QV8
    • On the center of the convertible top compartment cover
    • Removing and Installing. Refer to Satellite Antenna -R170-, REMOVING AND INSTALLING, CONVERTIBLE .
11. Nut
    • 6 Nm
12. Nut
    • 3 Nm
    • Quantity: 2
13. Bracket
14. Nut
    • 3 Nm
15. Telephone Antenna -R65-
    • Under the rear bumper cover on the right side
    • Only for 9ZE and EL3/IW3/IW5
    • Removing and Installing. Refer to GSM ANTENNA, REMOVING AND INSTALLING, CONVERTIBLE .

      - LTE Antenna 1 -R297-

    • Under the rear bumper cover on the left side
    • Only for EL3 and IW3/IW5
    • Removing and Installing. Refer to LTE ANTENNAS, REMOVING AND INSTALLING, CABRIOLET, FROM MY 2019, WITH CONNECT PLUS (IV1 THROUGH IV8), VEHICLES WITH ECALL/BCALL (IW3/IW5) .

      - LTE Antenna 2 -R306-

    • Under the rear bumper cover on the left side
    • Only EL3 and IW0
    • Removing and Installing. Refer to LTE ANTENNAS, REMOVING AND INSTALLING, CABRIOLET, FROM MY 2019, WITH CONNECT PLUS (IV1 THROUGH IV8), VEHICLES WITHOUT ECALL/BCALL (IW0) .
16. Nut
    • 9 Nm
17. Windshield Antenna Suppression Filter -C18-
    • Removing and installing
18. Nut
    • 9 Nm
    • Quantity: 2
19. Bolt
    • 2 Nm
20. Antenna Amplifier 2 -R111-
    • On the convertible top compartment cover on the left side
    • Removing and Installing. Refer to Antenna Amplifier 2 -R111-, REMOVING AND INSTALLING, CABRIOLET .
21. TV Antenna Amplifier 2 -R83-
    • On the left railing
    • Removing and Installing. Refer to TV Antenna Amplifier 2 -R83-, REMOVING AND INSTALLING, CABRIOLET .
22. Bolt
    • 2 Nm
23. Emergency Call Module Antenna -R263-
    • Under the left rear bench seat
    • Only for IW3/IW5
    • Removing and Installing. Refer to Emergency Call Module Antenna -R263-, REMOVING AND INSTALLING, CABRIOLET, FROM MY 2019 WITH CONNECT PLUS (IV1 THROUGH IV8) .
24. GPS Antenna -R50-
    • On the center left side of the convertible top compartment cover
    • Removing and Installing. Refer to GPS ANTENNA, REMOVING AND INSTALLING, CABRIOLET .
25. Telephone Antenna -R65-
    • On the center right side of the convertible top compartment cover
    • Only for 9ZE and EL3 and IW0
    • Removing and Installing. Refer to GSM ANTENNA, REMOVING AND INSTALLING, CONVERTIBLE .

      - LTE Antenna 1 -R297-

    • On the center right side of the convertible top compartment cover
    • Only for EL3 and IW0
    • Removing and Installing. Refer to LTE ANTENNAS, REMOVING AND INSTALLING, CABRIOLET, FROM MY 2019, WITH CONNECT PLUS (IV1 THROUGH IV8), VEHICLES WITHOUT ECALL/BCALL (IW0) .

      - Emergency Call Module Antenna 2 -R322-

    • On the center right side of the convertible top compartment cover
    • Only for IW3/IW5
    • Removing and Installing. Refer to Emergency Call Module Antenna 2 -R322-, REMOVING AND INSTALLING, CABRIOLET, FROM MY 2019 WITH CONNECT PLUS (IV1 THROUGH IV8) .
26. Bolt
    • 4 Nm
