TV Antenna Amplifier 1 -R82-, REMOVING AND INSTALLING, CABRIOLET: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the right side trim panel. Refer to OVERVIEW - SIDE TRIM PANEL .

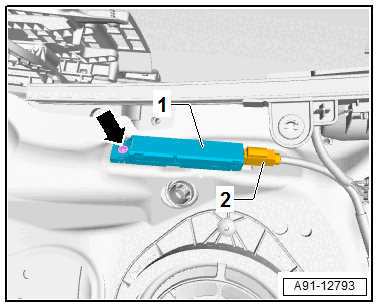

-- Release and disconnect the connector -2- from the TV Antenna Amplifier 1 -R82- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screw -arrow- and remove the TV Antenna Amplifier 1 -R82- -1-.
