Antenna Amplifier 3 -R112-, REMOVING AND INSTALLING, CABRIOLET: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the convertible top headliner. Refer to the appropriate Service Information .

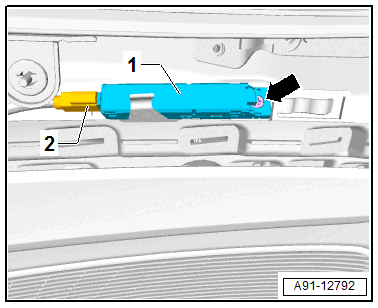

-- Release and disconnect the connector -2- from the Antenna Amplifier 3 -R112- -1-.
-- Release and disconnect the connector to the rear window antenna from the Antenna Amplifier 3 -R112- -1-.
-- Remove the screw -arrow- and remove the Antenna Amplifier 3 -R112- -1- from the bracket on the convertible top main bearing on the right side.
