Terminal 40 Wire Junction -TV66-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.
-- De-energize the 48V system. Refer to 48V SYSTEM, DE-ENERGIZING .
-- Release the catch and open the cover -1- -arrow-.

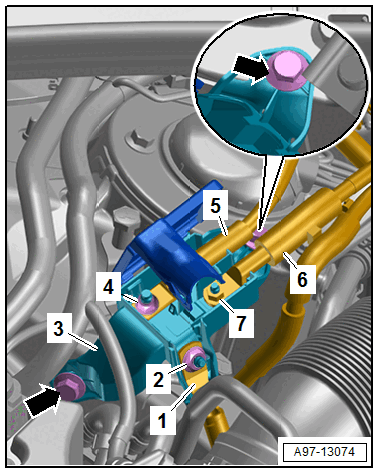

-- Remove the nuts -2, 4 and 7- and free up the wires -1, 5 and 6-.
-- Remove the screws -arrows-.
-- Remove the 48 V system wire junction -3-.
