Terminal 30 Wire Junction 3 -TV28-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.
-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to Battery -A-, DISCONNECTING AND CONNECTING, 0K2 .

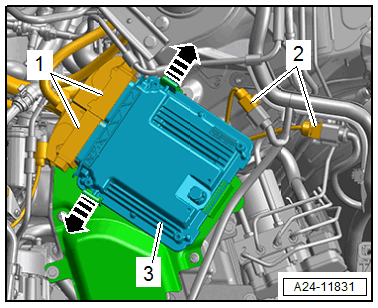

-- Release the retainers in direction of -arrows-.
-- Remove the engine control module -3- and with the lines -1- attached move to the side.

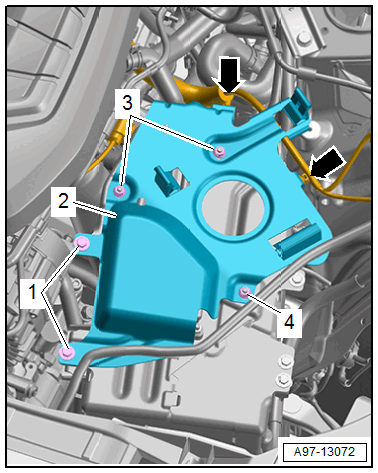

-- Free up the wiring harness -arrows-.
-- Remove the nuts -3 and 4- and the bolts -1-.
-- Remove the engine control module mount -2-.

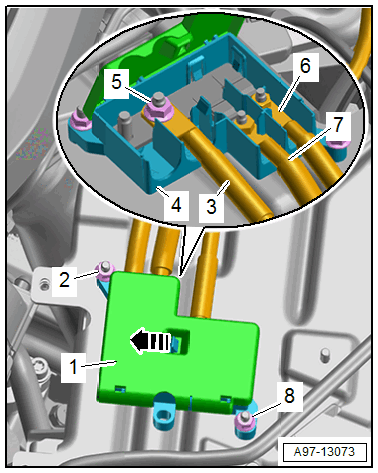

-- Release the latch in direction of -arrow- and open the cover -1-.
-- Remove the wires -6 and 7- and free them up.
-- Remove the nut -5- and free up the wire -3-.
-- Remove the nuts -2 and 8-.
-- Remove the wire junction -4-.
