Terminal 30 Wire Junction 2 -TV22-: Removing
WARNING: This page is about a different variant/trim than selected.
-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING [CWGD] or AIR FILTER HOUSING, REMOVING AND INSTALLING [CYMC] .
-- Release the retainers in direction of -arrows-.
-- Open the cover in the sequence -2 and 1-.

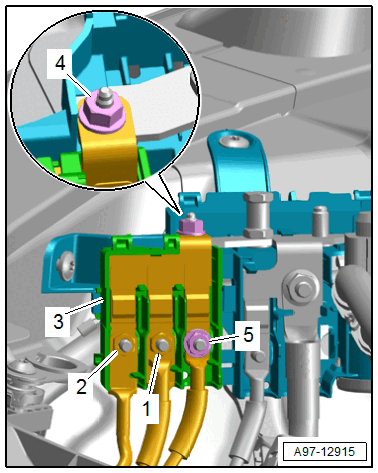

-- Remove the wires -1, 2 and 5- and free them up.
-- Remove the nut -4-.
-- Remove the wire junction -3- upward.
