Terminal 30 Wire Junction -TV2-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.
-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING [CWGD] or AIR FILTER HOUSING, REMOVING AND INSTALLING [CYMC] .

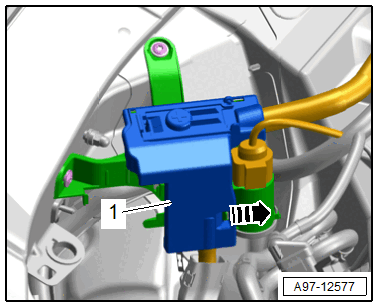

-- Release the retainer in direction of -arrow-.
-- Open the cover -1-.
-- If equipped, remove terminal 30 wire junction 2 and move to the side with the wires still connected. Refer to Terminal 30 Wire Junction 2 -TV22- .

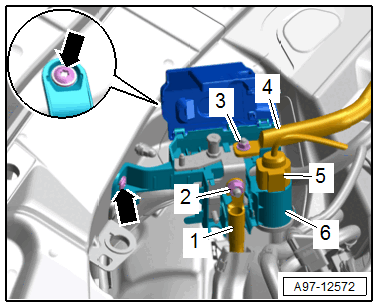

-- Disconnect the connector -5-.
-- Remove the nuts -2 and 3- and free up the wires -1 and 4-.
-- Remove the bolts -arrows-.
-- Remove the wire junction -6-.
