Relay and Fuse Panel 4 -SR4-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the right front sill panel. Refer to SILL PANEL, REMOVING AND INSTALLING .
-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Push the carpet in the area of the footwell to the side as far as possible.

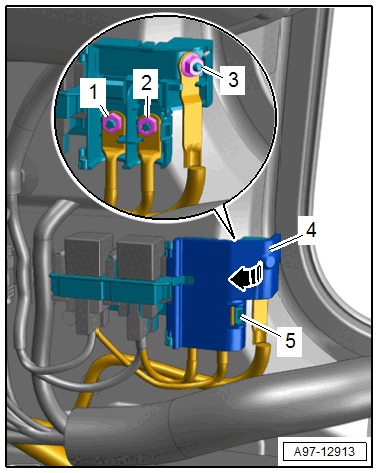

-- Release the catch -5- and open the cover -4- in direction of -arrow-.
-- Remove the nuts -1, 2 and 3- and free up the wires.
-- Remove the relay -2- from the mount -1- by opening the clip in direction of -arrow-.

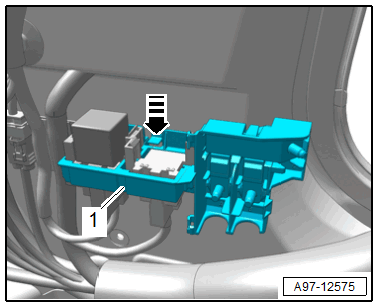

-- Release the retainer in direction of -arrow- and remove the wire junction -1-.
-- Release the clips in direction of -arrows- and press the relay panel -2- back and out of the bracket -1-.
