12 V Wire Junction In Luggage Compartment, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Disconnect the battery. Refer to Battery -A-, DISCONNECTING AND CONNECTING, 0K0 .
-- Remove the lock carrier trim panel. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING .

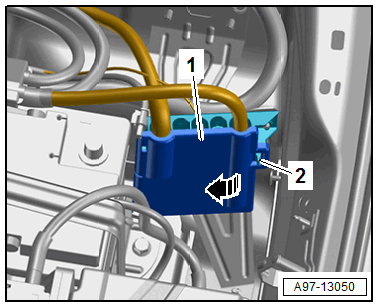

-- Release the catch -2- and open the cover -1- -arrow-.

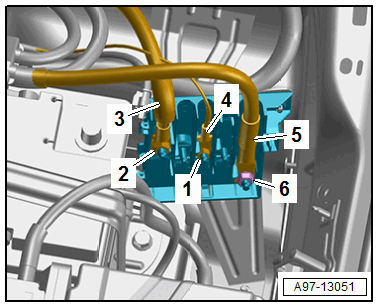

-- Remove the nuts -1, 2 and 6- and free up the wires -3, 4 and 5-.

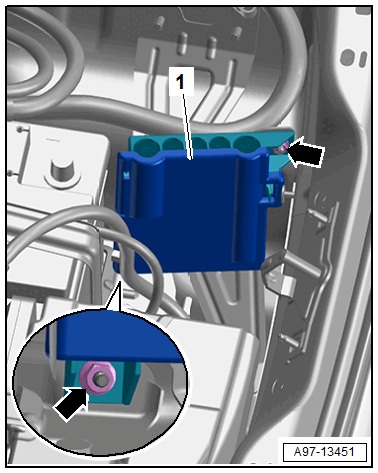

-- Remove the nuts -arrows-.
-- Remove the wire junction -1-.
