Relay and Fuse Panel 2 -SR2-, REMOVING AND INSTALLING, COUPE, SPORTBACK: Removing

-- Loosen the luggage compartment side trim panel at the bottom by removing the tie downs. Refer to TIE DOWN, REMOVING AND INSTALLING .

-- Open the cover for the left luggage compartment side trim panel.

-- Release the retainer -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bracket -2- for the control modules upward in direction of -arrow-.

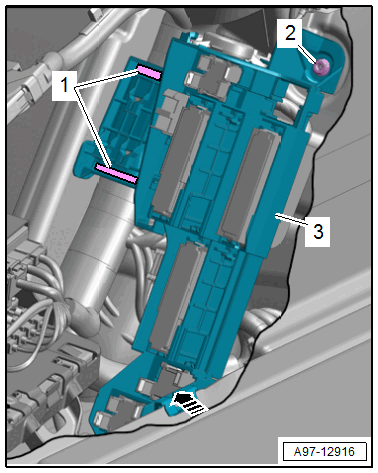

-- Cut the cable tie -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -2-.

-- Release the retainer in direction of -arrow-.

-- Lift the relay and fuse panel 2 -3- and remove toward the rear.

-- Open the clip in the direction of -arrow- and remove the fuse panel -2- from the relay and fuse panel 2 -1-.

Fig 1: Fuse Panel

Courtesy of AUDI OF AMERICA, LLC

-- Open the clip and remove the auxiliary fuse panel -2-.

Fig 2: Auxiliary Fuse Panel

Courtesy of AUDI OF AMERICA, LLC

-- Release the clips in direction of -arrows- and remove the relay -1- and the control modules from the relay panels.

-- Release the clips in direction of -arrows- and pull the relay panel -2- toward the rear out of the relay and fuse panel 2 -1-.

Fig 3: Identifying Relay Panel And Connector Station

Courtesy of AUDI OF AMERICA, LLC

-- Remove the relay and fuse panel 2.
