Relay and Fuse Panel 2 -SR2-, REMOVING AND INSTALLING, CABRIOLET: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

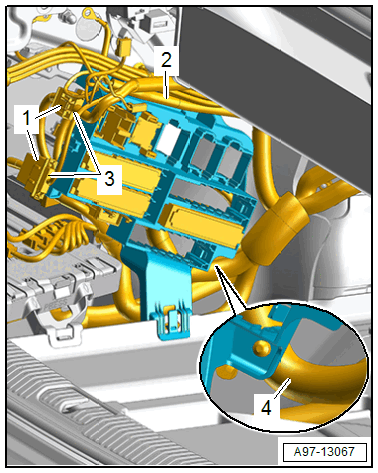

-- Disconnect the connectors -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the connector -1- by pressing the retainer.

-- Free up the wiring harness -2 and 4-.

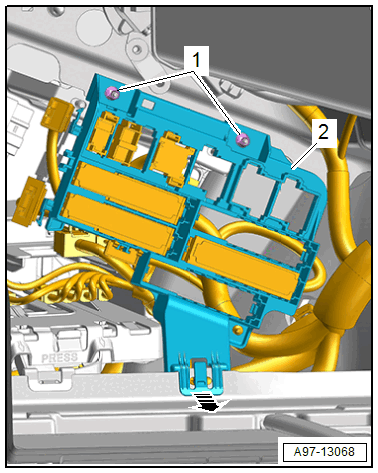

-- Remove the nuts -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the relay and fuse panel 2 -item 2- from the threaded pins.

-- Release the retainer in direction of -arrow- and remove the relay and fuse panel 2 upward.

-- Open the clip in the direction of -arrow- and remove the fuse panel -2- from the relay and fuse panel 2 -1-.

Fig 1: Fuse Panel

Courtesy of AUDI OF AMERICA, LLC

-- Open the clip and remove the auxiliary fuse panel -2-.

Fig 2: Auxiliary Fuse Panel

Courtesy of AUDI OF AMERICA, LLC

-- Release the clips in direction of -arrows- and remove the relay -1- and the control modules from the relay panels.

-- Release the clips in direction of -arrows- and pull the relay panel -2- toward the rear out of the relay and fuse panel 2 -1-.

Fig 3: Identifying Relay Panel And Connector Station

Courtesy of AUDI OF AMERICA, LLC

-- Remove the relay and fuse panel 2.
