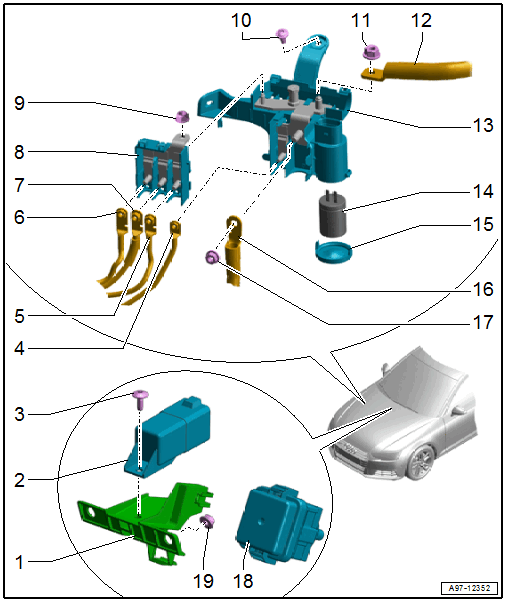

Overview - Relay Panel, Instrument Panel, E-Boxes Engine Compartment
WARNING: This page is about a different variant/trim than selected.
- Bracket
- For the control modules
- Automatic Glow Time Control Module -J179-
- Bolt
- 2.5 Nm
- Line
- 7.5 Nm
- Allocation. Refer to the appropriate Wiring Diagram.
- Line
- 7.5 Nm
- Allocation. Refer to the appropriate Wiring Diagram.
- Line
- 7.5 Nm
- Allocation. Refer to the appropriate Wiring Diagram.
- Line
- 7.5 Nm
- Allocation. Refer to the appropriate Wiring Diagram.
- Terminal 30 Wire Junction 2 -TV22-
- Removing and installing. Refer to Terminal 30 Wire Junction 2 -TV22- .
- Nut
- 7.5 Nm
- Bolt
- 3 Nm
- Quantity: 2
- Nut
- 18 Nm
- Positive Cable
- From the battery
- Terminal 30 Wire Junction -TV2-
- Removing and installing. Refer to Terminal 30 Wire Junction -TV2-, REMOVING AND INSTALLING .
- Suppressor -C24-
- Removing and installing. Refer to Suppressor -C24-, REMOVING AND INSTALLING .
- Cap
- Positive Cable
- To starter, generator
- Nut
- 20 Nm
- Relay and Fuse Panel 3 -SR3-
- Allocation. Refer to the appropriate Wiring Diagram.
- Nut
- 2.5 Nm
- Quantity: 2
