Component Location Overview - Component Location Overview - Relay Panel, Instrument Panel, E-Boxes In Luggage Compartment, 48 V System, 0K4 And VH2
WARNING: This page is about a different variant/trim than selected.

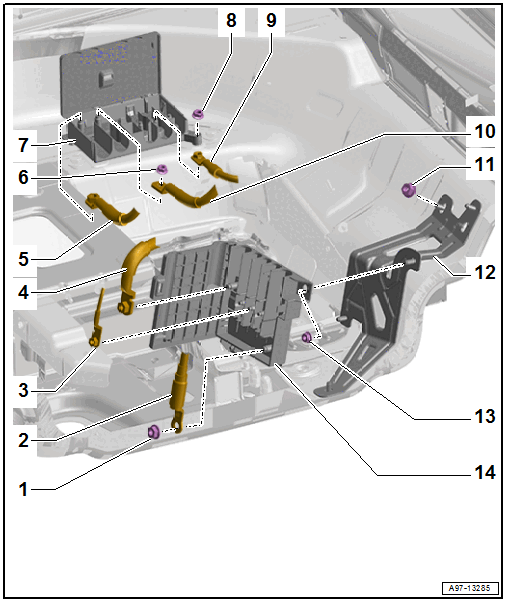

- Nut
- 18 Nm
- Positive Cable
- To the main fuse panel
- Wire
- Tightening specification: 7.5 Nm
- Allocation. Refer to the appropriate Wiring Diagram.
- Wire
- Tightening specification: 18 Nm.
- Allocation. Refer to the appropriate Wiring Diagram.
- Positive Cable
- Tightening specification 20 Nm
- To the Battery, 48 V -A6-
- Nut
- 20 Nm
- Terminal 40 Wire Junction 2 -TV67-
- Removing and Installing. Refer to Terminal 40 Wire Junction 2 -TV67-, REMOVING AND INSTALLING .
- Nut
- 3.5 Nm
- Quantity: 2
- Wire
- Tightening specification 9 Nm.
- Allocation. Refer to the appropriate Wiring Diagram.
- Wire
- Allocation. Refer to the appropriate Wiring Diagram.
- Nut
- 3.5 Nm
- Quantity: 3
- Mount
- For 12 V wire junction
- Nut
- 3.5 Nm
- Quantity: 2
- 12 V Wire Junction
- Equipped on some models. Refer to the Parts Information
- Removing and Installing. Refer to 12 V WIRE JUNCTION IN LUGGAGE COMPARTMENT, REMOVING AND INSTALLING .
