Fuse Panel C -SC-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the driver side instrument panel side cover. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .

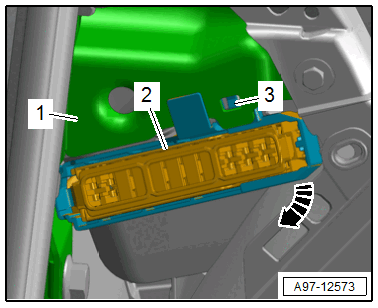

-- Open the clip -3- and remove fuse panel C -2- on the instrument panel central tube -1- in direction of -arrow-.
-- Release the tab in direction of -arrow-, push fuse panel -2- to the rear and disengage it from the fuse panel C -1-.
