Data Bus On Board Diagnostic Interface -J533-, REMOVING AND INSTALLING, CABRIOLET: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the rear seat backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .

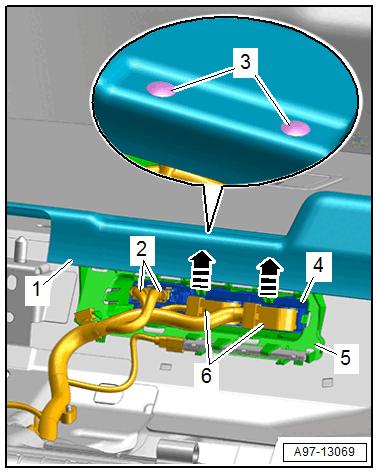

-- Remove the expanding clips -3- using the Pliers: T40172C .
-- Lift the front luggage compartment floor -1- in the data bus on board diagnostic interface area.
-- Disconnect the connectors -6- and antenna wires -2-.
-- Release the retainers in direction of -arrows-.
-- Remove the data bus on board diagnostic interface -4- from the mount -5-.
