Engine, Supporting In Installation Position
WARNING: This page is about a different car, the 2020 Audi A5 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Engine Support Bridge: 10-222A
Procedure
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

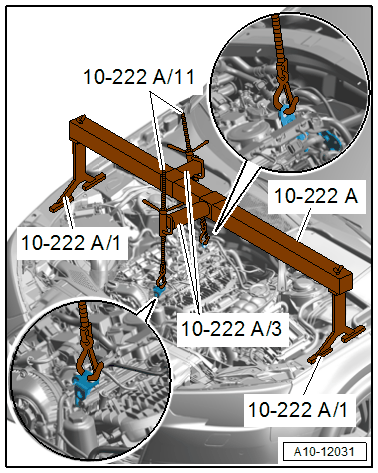

-- Position the : 10-222A as shown on the left and right fender bolting edges.
-- Engage the : 10-222A/11 on the engine lifting eye.
-- Pretension the engine with the spindle, do not lift.
Assembling
Assemble in the reverse order of removal. Note the following:
-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
