Muffler, Removing And Installing: Removing

WARNING: This page is about a different car, the 2020 Audi A5 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Equipped on some models: remove the left and right diagonal brace. Refer to OVERVIEW - UNDERBODY BRACING .

-- Loosen the clamping sleeve -arrows- and push toward the rear.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damaging the coupling due to improper handling.

- Coupling must not be bent more than 10°.

- Do not load the coupling on the cable.

-- Slightly lower the front muffler and remove the clamping sleeve.

-- Tie up the front muffler.

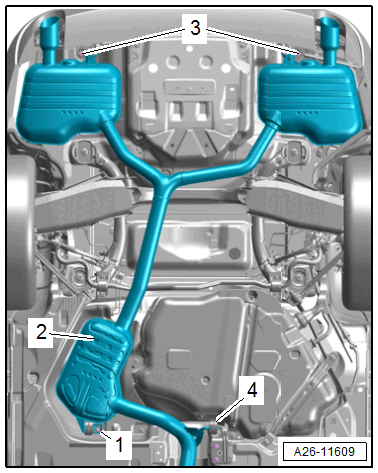

FWD Vehicle:

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of accident due to the heavy weight of the muffler.

- A second technician is required for the following work steps.

-- Disengage the mounting -4- from the exhaust system.

-- Remove the bolts -1 and 3- and remove the muffler -2-.

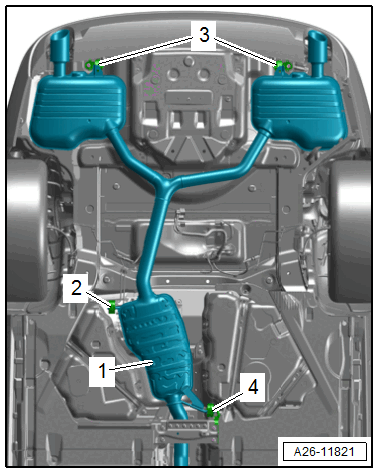

AWD Vehicle:

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of accident due to the heavy weight of the muffler.

- A second technician is required for the following work steps.

-- Disengage the mounting -2 and 4- from the exhaust system.

-- Remove the bolts -3- and remove the muffler -1-.
