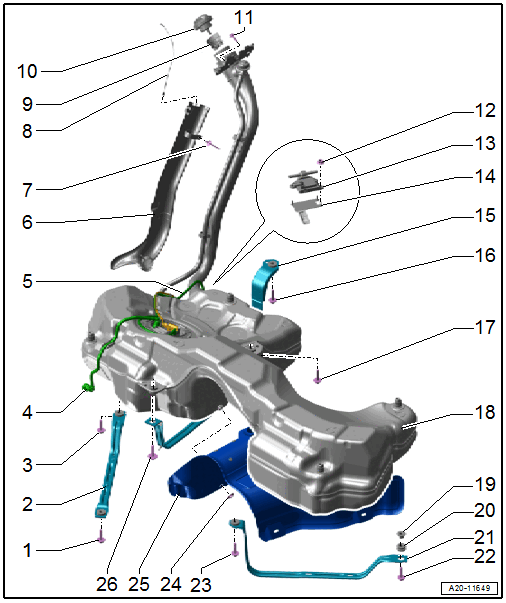

Overview - Fuel Tank, TDI Vehicles With AWD North AMERICAN Market-Specific Version
WARNING: This page is about a different car, the 2022 Audi S5, 2021 Audi S5, 2020 Audi S5, and 2020 Audi A5 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 20 Nm
- Mounting Strap
- Secured to the fuel tank with expanding clips.
- Bolt
- 20 Nm
- Fuel Supply Line
- To the fuel filter
- Clipped to the fuel tank
- Do not kink
- Connector couplings, disconnecting and connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Not Installed
- Protective Plate
- For the fuel filler neck
- Rivet
- Quantity: 2
- Ground Connection
- For protective plate
- For discharging electrostatic charge. Refer to Fig 2.
- Misfueling Guard
- Removing and installing. Refer to MISFUELING GUARD, REMOVING AND INSTALLING .
- Cap
- Turn until it clicks into place.
- Attached to the fuel filler door unit with fastener
- Bolt
- 8 Nm
- Secures the fuel filler neck and works as the ground connection
- Quantity: 2
- Not Installed
- Not Installed
- Not Installed
- Mounting Strap
- Secured to the fuel tank with expanding clips.
- Bolt
- 20 Nm
- Bolt
- 20 Nm
- Fuel Tank
- There are different versions. Refer to the Parts Information for the allocation.
- Removing and Installing. Refer to FUEL TANK, REMOVING, TDI VEHICLES .
- Bushing
- Rubber Bushing
- Mounting Strap
- Secured to the fuel tank with expanding clips.
- Bolt
- 20 Nm
- Bolt
- 20 Nm
- Spring Nut
- 2 Nm
- For the heat shield
- Quantity: 5
- Heat Shield
- For the fuel tank
- Bolt
- 20 Nm

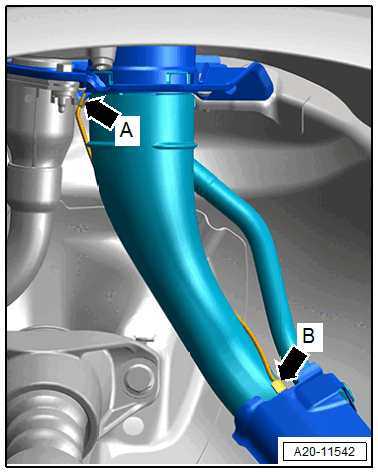

Ground Connection Routing
-- Route the ground connection as shown.
-- Make sure the following connectors are secure:
- The connector -arrow A- must be connected securely on the metal ring and the connector -arrow B- must be connected securely on the protective plate of the fuel filler neck.
