Fuel Tank Pressure Sensor -G400-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi S5, 2021 Audi S5, 2020 Audi S5, and 2020 Audi A5 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Observe the safety instructions. Refer to SAFETY PRECAUTIONS .
-- Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
-- Remove the right rear wheel housing liner. Refer to REAR WHEEL HOUSING LINER, REMOVING AND INSTALLING .

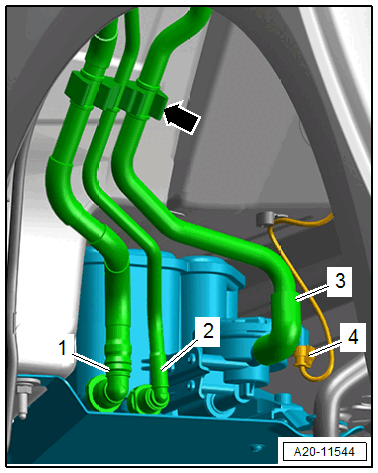

-- Disconnect the vent and bleeder lines -1, 2 and 3-. Disconnect the connector couplings. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
-- Disengage the vent and bleeder lines from the bracket -arrow- and move to the side.
-- Disconnect the connector -4- by unlocking the connector safety catch.

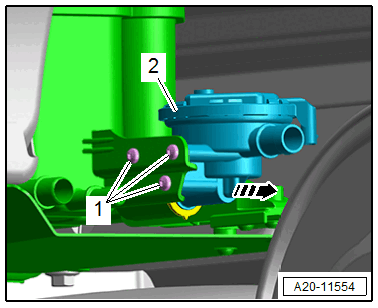

-- Remove the bolts -1-.
-- Remove the fuel tank pressure sensor -2- from the EVAP canister in direction of -arrow-.
