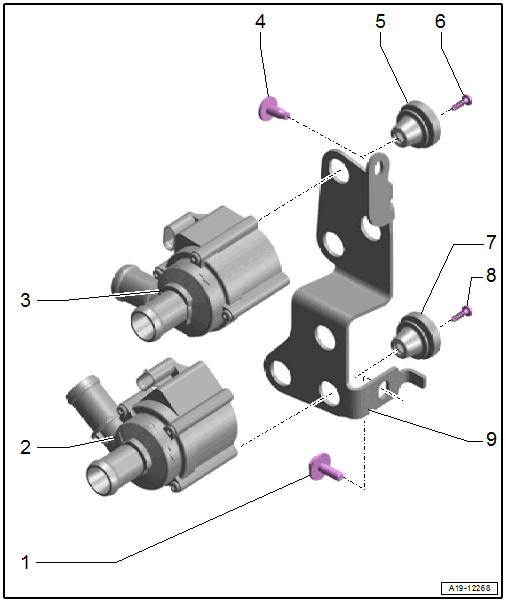

Overview - Electric Coolant Pump
WARNING: This page is about a different car, the 2020 Audi A5 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 9 Nm
- Coolant Recirculation Pump -V50-
- Removing and installing. Refer to Coolant Recirculation Pump -V50-, REMOVING AND INSTALLING .
- After-Run Coolant Pump -V51-
- Removing and installing. Refer to After-Run Coolant Pump -V51-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Rubber Grommet
- Bolt
- 2.7 Nm
- Rubber Grommet
- Bolt
- 2.7 Nm
- Bracket
- For the electric coolant pump
