Coolant Recirculation Pump -V50-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2020 Audi A5 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

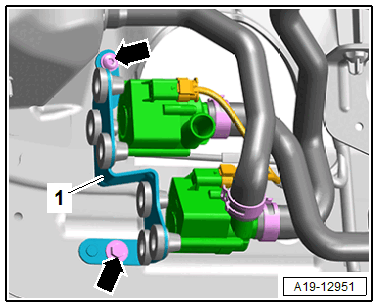

-- Vehicle with particulate filter: remove the bolts -arrows- for the bracket -1-.

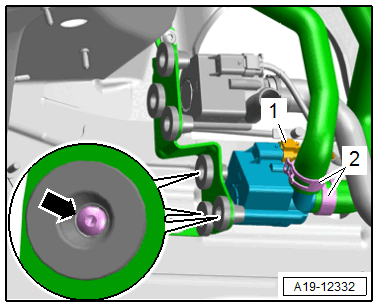

-- Disconnect the connector -1-.
-- Place a cloth underneath to catch any escaping coolant.
-- Loosen the hose clamps -2- to clamp off the coolant hoses with the : 3094 and remove them.
-- Remove the bolts -arrow- and the Coolant Recirculation Pump -V50-.
