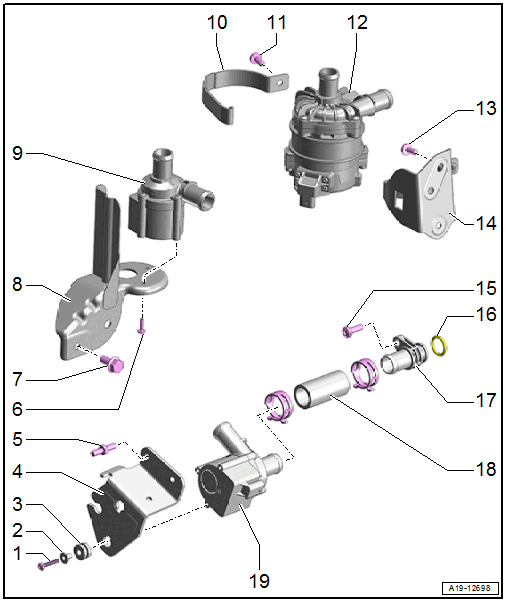

Overview - Electric Coolant Pump, 2.9L Engine
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Audi S5, 2022 Audi RS 5 Sportback, 2022 Audi RS 5, 2021 Audi S5, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 1.5 Nm
- Spacer Sleeve
- Grommet
- Bracket
- For After-Run Coolant Pump -V51-
- Depending on the version with impact absorber
- Bolt
- 9 Nm
- Bolt
- 1.5 Nm
- Bolt
- 20 Nm
- Bracket
- For the Coolant Recirculation Pump -V50-
- Coolant Recirculation Pump -V50-
- For equipment versions without parking heater
- Removing and Installing. Refer to Coolant Recirculation Pump -V50-, REMOVING AND INSTALLING, 2.9L ENGINE .
- Retaining Bracket
- Bolt
- 9 Nm
- Charge Air Cooling Pump -V188-
- Removing and Installing. Refer to Charge Air Cooling Pump -V188-, REMOVING AND INSTALLING, 2.9L ENGINE .
- Bolt
- 9 Nm
- Bracket
- For the Charge Air Cooling Pump -V188-
- Bolt
- 9 Nm
- O-Ring
- Always replace after removing.
- Connection
- Coolant Hose
- After-Run Coolant Pump -V51-
- Removing and Installing. Refer to After-Run Coolant Pump -V51-, REMOVING AND INSTALLING, 2.9L ENGINE .
