Coolant RECIRCULATION Pump -V50-, Removing And Installing, 2.9L Engine: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Audi S5, 2022 Audi RS 5 Sportback, 2022 Audi RS 5, 2021 Audi S5, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the right front muffler. Refer to FRONT MUFFLER, REMOVING AND INSTALLING .
-- Disconnect the connector -3-.
-- Push the heat shield slightly upward.
-- Loosen the hose clamps -2- to clamp off the coolant hoses with the :3094 and remove them.
-- Remove the bolt -arrow- and remove the Coolant Recirculation Pump -V50- with bracket.

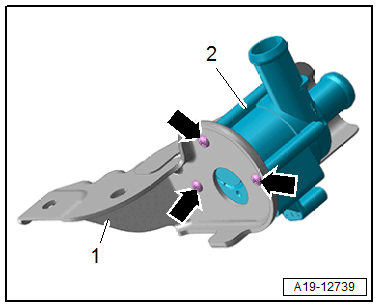

-- Remove the bolts -arrows- and remove the coolant pump -2- from the bracket -1-.
