Charge Air Cooling Pump -V188-, Removing And Installing, 2.9L Engine: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Audi S5, 2022 Audi RS 5 Sportback, 2022 Audi RS 5, 2021 Audi S5, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING, 2.9L ENGINE .

-- Remove the front left wheel spoiler. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Install the lower bumper cover on the lock carrier. Refer to OVERVIEW - BUMPER COVER .

-- Disconnect the connector -3-.

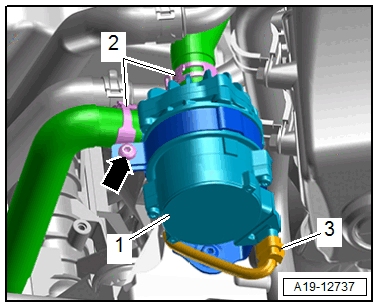

Fig 1: Charge Air Cooling Pump -V188- - Component Location, 2.9L Engine

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -arrow- and remove the retaining bracket.

-- Place the container of the :VAS5014 or :VAS6208 underneath.

-- Loosen the clamps -2- and remove the coolant hoses.
