After-Run Coolant Pump -V51-, Removing And Installing, 2.9L Engine: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Audi S5, 2022 Audi RS 5 Sportback, 2022 Audi RS 5, 2021 Audi S5, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the right catalytic converter (refer to CATALYTIC CONVERTER, REMOVING AND INSTALLING ) move with the heated oxygen sensor connected to the side and secure, to do so free up the wire.
-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING, 2.9L ENGINE .

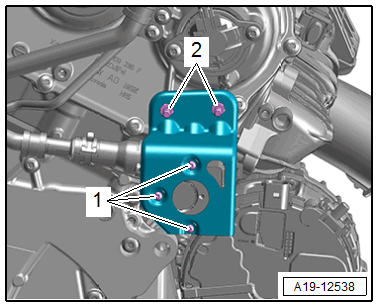

-- Remove the double bolt -2- and bolts -1- and remove the bracket for the After-Run Coolant Pump -V51-.
-- Disconnect the connector -3-.
-- Tighten the bolt -arrow- using the :T10405 .

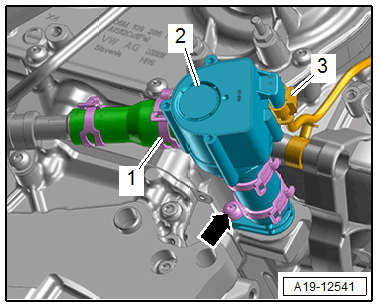

-- Loosen the hose clamp -1- and remove the After-Run Coolant Pump -V51- -2-.
